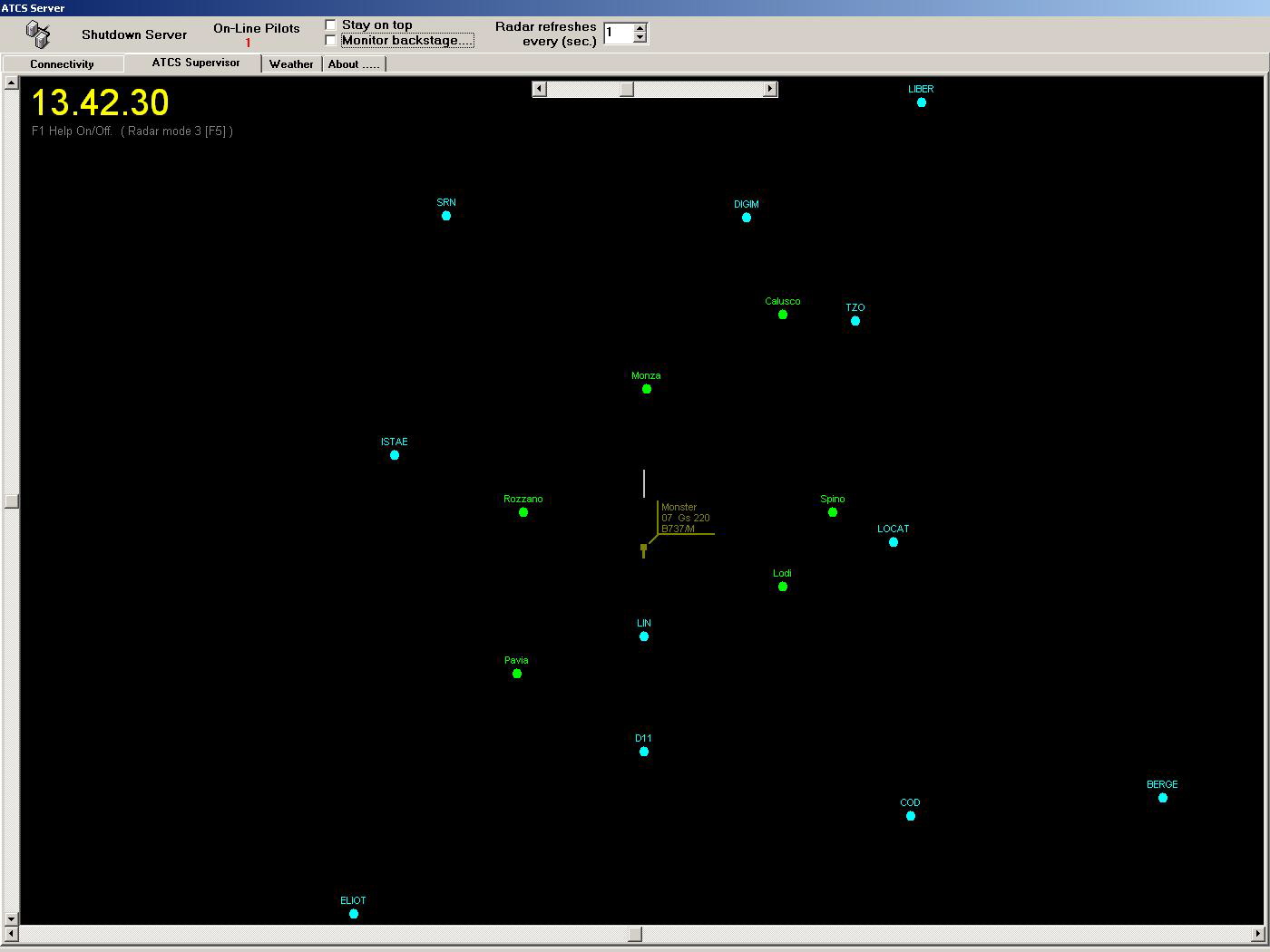

This is the default page for ATCS Server. In this picture there is only a plane on final for runway 36. You may notice the Callsign (Monster), the Altitude 07 (700 feet) the ground speed (Gs 220 [Kts]) the aircraft type (B737/M) with wake turbulence. The server can handle upto 25 planes and . Each plane has a different color. The radar has 5 different display modes. Map can be panned, zoomed and quickly restored in size and center with keyboard.

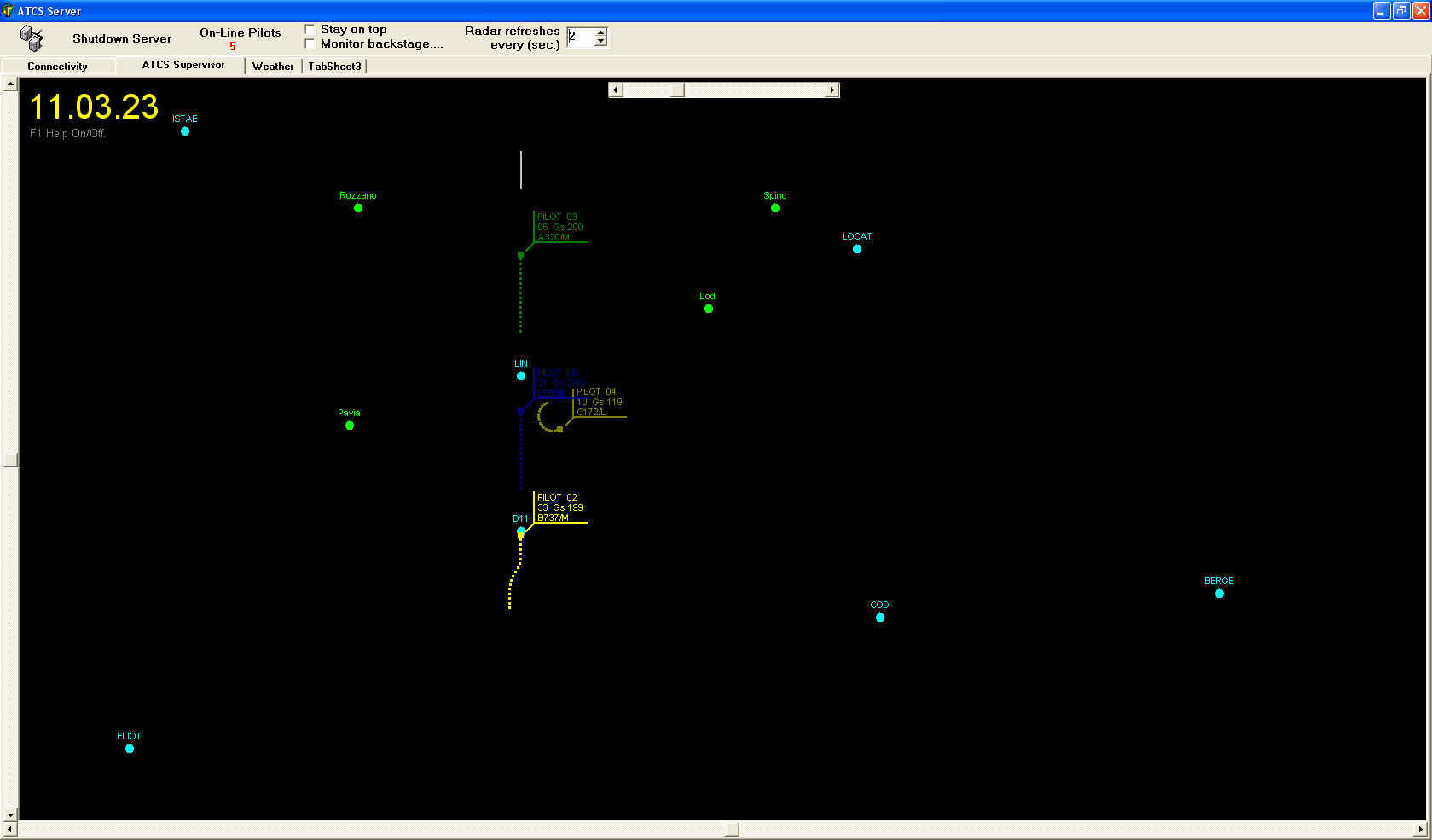

Below there are more images of radar screen.
|
